User Guide – netDocShare app for Microsoft 365 SharePoint Online / SharePoint Server 2019 / SharePoint Server 2016 – Authentication

In order to user our application, users must authenticate with NetDocuments. This is a security requirement for accessing the NetDocuments API. This ensures that no outside users will be able to access privileged information.

Authenticating with NetDocuments

Our app uses standardized Oauth protocols to communicate with the NetDocuments API. After login & permissions are granted, the API server will return Access and Refresh tokens which are required to make further queries.

Access tokens have a limited lifespan. They expire after 45 minutes of no activity or between 24 and 48 hours of when they are issued. If an API query is made with an expired token, a 401 Unauthorized status is returned. netDocShare automatically processes expired tokens and attempts to retrieve a new token when required. For this, we use refresh tokens which last much longer.

A refresh token with full access will expire in 40 days. A refresh token with the least access will expire after 90 days. Once the refresh token has been depleted, users will be expected to enter their login credentials again in order to obtain a new refresh token.

This is different from a login lifetime when using NetDocuments itself. NetDocuments for security reasons will log out users automatically after 90 minutes of inactivity. As a NetDocuments user, you can enable an automated login option if your organization has Microsoft Active Directory Services.

Logout

Logging out from NetDocuments can be done on a browser level. For example, if you log in to NetDocuments.com in a browser tab and open a SharePoint page with netDocShare webparts in another tab, it will recognize that you are logged in and display the Allow / Deny screen.

We also provide an optional method to log out from inside NetDocShare. The Config Builder contains a field called “Show Logout”. When enabled, this will include a dropdown menu on the top right side of the webpart which will display a greeting and the NetDocuments user’s name:

Clicking on this will reveal a logout option which will remove the NetDocuments session from the browser. Note: This will log you out of NetDocuments in every tab of the current browser. The page will refresh automatically, and users must login to NetDocuments before resuming usage.

Auth FAQ

Invalid URL error

Users must make sure that the URL they submit to https://netdocuments.force.com is EXACTLY the same as their auth page URL. This must match case and spelling exactly or else it will throw invalid URL error. This includes http and https.

Duplicate Webparts

In some older SharePoint versions, webparts linger on the page even after they have been deleted. The number of webparts can be seen here:

If there is more than one webpart on a page, it will impact how our software will function, e.g. the page might have multiple auth popups among other things, as the hidden webparts will still be loading code. To remove the unnecessary webparts officially, open the page in Web Part Page Maintenance and remove hidden webparts.

Auth failing to refresh or redirect

If Authentication is failing to redirect or failing to reload the page after logging in or clicking the “Allow / Deny” prompt, this may be due to existing errors on the page which may block attempts to navigate to another page. In order to avoid this, or to test whether this is the issue, please insert our webpart on a blank Sharepoint page that loads no other content such as ScriptEditor webparts or scripts embedded into the Master Page. If the webpart can work on the blank page but not on the original page, there is some content that is blocking the functionality of our app. In this case, we recommend fixing the existing errors on the page or using a page which does not load the problematic content.

NEW: Service-based Authentication

(available from version 2.4.1 onwards)

We are proud to introduce a new service-based authentication model which will do away with the previous requirements to create SharePoint Auth pages and submit redirect URLs for each client. This is available from v2.4.1 onwards and will take effect immediately upon installation. NOTE: This will NOT disrupt the previous auth system for clients who do not wish to switch and it can be reverted to the previous system at any time. However, we highly encourage the update as it confers many benefits to users and administrators alike. Below is a table comparing the features of each system.

SharePoint Auth Page (OLD) Service-based Auth (NEW)
- Requires creation of Auth page for every distinct site collection - Does NOT require auth pages to be created
- Requires submission of redirect URLs to KLST to ensure security - Does NOT require redirect URLs to be submitted
- Easy to cause auth errors by misspelling or mistyping important auth values - Uses a universal authentication URL for all purposes
- Completely self-contained but requires the SharePoint Auth page to be active at all times - Dependent on KLST’s authentication service to be active

Universal authentication URL: https://netdocshare.azurewebsites.net/auth

Toggling on the option pictured above will automatically begin using service-based authentication. Users can also choose to turn it off and insert the URL above into the “Auth Suffix” field in the config builder in order to achieve the same result.

Support for Single-Sign On

NetDocShare webparts and tabs support single-sign on using ADFS as an identity provider and SAML as an authentication type. This means that your Windows or SharePoint credentials will be used to sign in as a NetDocuments user. This system must be set up properly on your Microsoft Active Directory environment before netDocShare is installed. This can be tested by opening NetDocuments.com on a browser, it should automatically log in users instead of showing the login screen. Once this has been properly set up on the client side, there are only 2 additional steps to ensure that this system is properly applied to netDocShare:

Please find the “usingSSO” property in the config builder, and turn this property to true. This must be done for all webparts/tabs that want to use SSO or else the view will default to regular authentication. This can be set up as an admin setting to avoid having to change all webparts. Please see the config Builder section or the Admin-specific user guide for more info

Once “usingSSO” has been activated, a normally hidden field called “repoID” should appear for you to fill in. Please fill in this field with the repository ID that you have been given in NetDocuments. Repository is the highest level container in Netdocuments.

Legacy: Local Webpart Authentication

ATTENTION: Starting with version 2.4.1, we have introduced a new service-based authentication system which enables users to skip the following section. You
may still use the system outlined below, however, we recommend using our new system in most cases. Please see the section labeled “NEW: Service-Based Authentication” for more information

Prior to the installation of any
other WebParts, the netDocShare Auth WebPart must be installed first. This WebPart is required for security reasons, as your NetDocuments account is secured by login and authentication processes. If the Auth WebPart is not added, the other WebParts will
be unable to login to NetDocuments.

Step-by-step installation instructions:

1.
Classic SharePoint:

From the Home page in your SharePoint account, navigate to Site Contents on the left-hand side menu. Choose or create a page from within
one of your Site Contents’ Lists or Libraries that you wish to add the netDocShare Auth WebPart to.

Note: This page does not have to be the same page as where you wish to install the Document Viewer, RecentDocs, TreeView WebParts. The netDocShare Auth WebPart only needs to exist on a page within the scope of your Root Site Collection in order to facilitate the NetDocuments authentication procedure for any and all the included WebParts.

Classic
SharePoint (Team Site):

Select Pages on left-side panel. Create a new Web Part Page.

2.
Classic SharePoint:

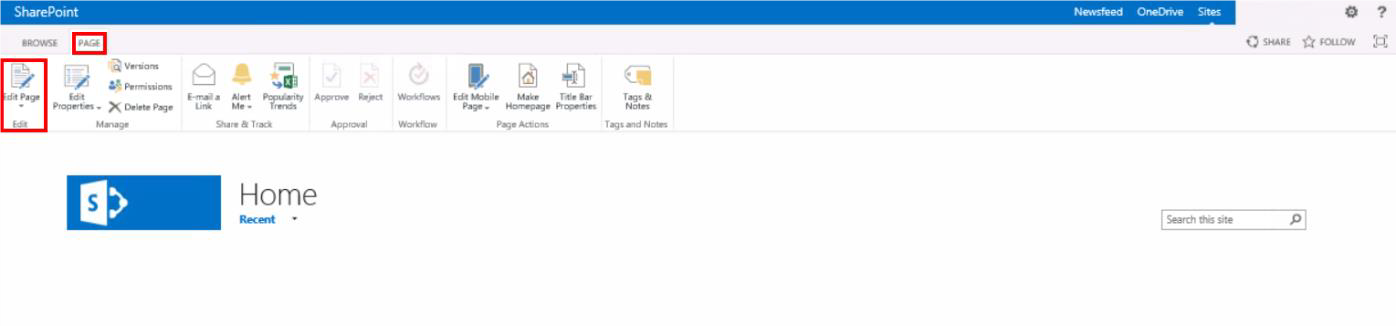

Click Page in the upper left-hand corner. Next, click Edit Page on the ribbon’s far left.

Classic
SharePoint (Team Site):

Name the new web part “auth”*, select Full Page, Vertical, select Site Pages for Document
Library, then Create.

*Case-sensitive

3. Classic SharePoint:

Click Add a Web Part. Under
the Categories gallery, find and select your SPFx WebParts folder from the menu and select the Auth WebPart. Note: Your category list may look different depending on what you have installed on your SharePoint tenant.

Classic
SharePoint (Team Site):

Similar to Classic. Destination for AuthWebPart may vary.

4.
You will see that the newly added Web Part says, “Please input your NetDocuments Configuration Object.” Click the Web Part menu (small arrow in the upper right-hand corner) and then select Edit Web Part.

5.
Classic SharePoint:

Select Extended Settings at the bottom and enter the App Configuration Auth JSON Object (Example provided
in following step) inside the Config Settings field, then click Apply.

Classic
SharePoint (Team Site):

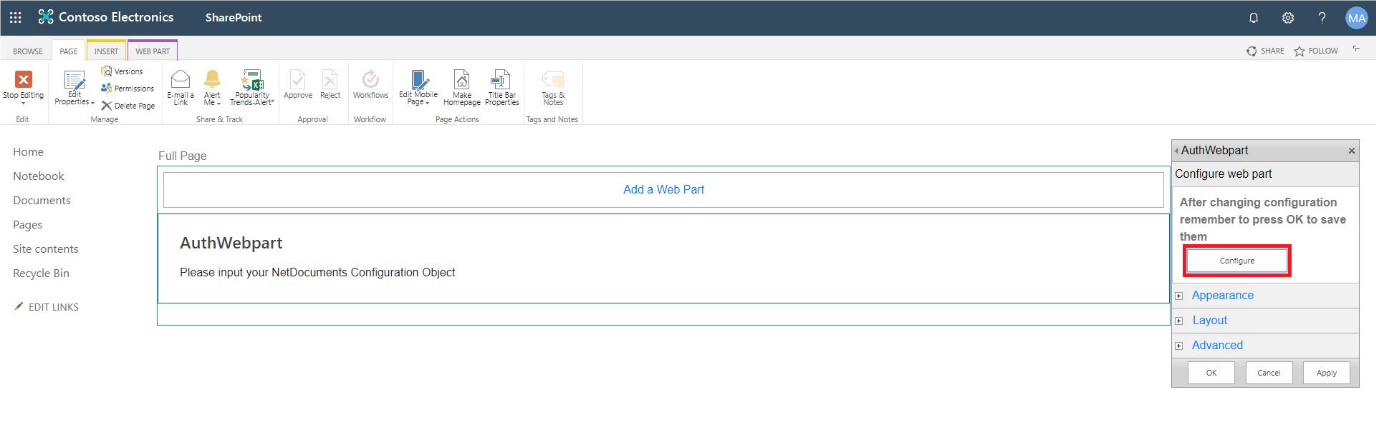

At the Configure web part, click “Configure”. Enter the App Configuration Auth JSON Object (Example provided in following step) inside
the Enter your Webpart Config here field, then click “x” at top-right and click Apply.

6. An example and explanation of this Auth JSON Object is as follows:

{ “viewType”: “Auth”, “netDocsClientId”: “AP-P0V35CC”, “netDocsClientSecret”: “22neL4s4DF5WU18RMaUX2pikMzg460urwyr2xMCsf”, “netDocsBaseUrl”: “https://api.vault.netvoyage.com/v2“, “CDNBaseUrl”:
https://klstsp13d-sp:5807/ “, “authPage”: “redirect” “AuthSuffix”: “Pages/auth.aspx ” }

For explanations
of each property, what they do and what values should be used to change them, please see our Config Builder Properties Appendix at the end of the document.

7.
Note: The page to which you add the Auth WebPart must be registered with your NetDocuments Developer account (https://NetDocuments.force.com) as a redirect URI. With this method, no matter where your other netDocShare WebParts are, the NetDocuments REST API will always authenticate to the URL where your Auth WebPart exists.
This allows multiple WebParts on the site collection to be authenticated from just 1 location. Without this process, every WebPart page will need to authenticate on its own, requiring you to add every URL to the Dev account. Now that you have a netDocShare
Auth WebPart, you may navigate to any other page within the scope of your Root Site Collection and install any of the other netDocShare WebParts using the same process as above. More info about this in the next section.

8. Once the Auth process activates, a popup will be opened with a NetDocuments login screen similar to this:

Enter your NetDocuments credentials. It should recognize that the login is coming from a custom app instead of a general browser login. It will then ask for permissions<br /> for this specific app on a screen that looks like this:

Note the name of the app, which should match the name of the App created in your netdocuments.force.com account

You must click ‘Allow’ for the app to work but you do NOT have to do it during the process of setting up Auth for the first time. When in initial setup, all you need to do is make sure that the app name, redirect<br /> URL and login details on the top right are correct. You may press escape to cancel the popup and save the webpart page to continue.

Note: When<br /> making the Auth page for the first time, once you have determined that the configs are correct, simply save the page. You may notice that if you press “Allow” in this initial state, it may redirect you to an empty or blank page. This is because the Auth<br /> webpart is designed to be used as a part of the authorization process, in which it will re-direct users back to the original requesting page after authorizing. This will not work if you do not have other webparts created yet.

Classic
vs Modern:

This process is very similar for modern pages except for aesthetics. Add a page by navigating to Pages, which should<br /> be a tab link in the homepage of the site collection.

From here you can simply create a new page and use the edit buttons that you see on the page instead of the ribbon. In edit mode, press the + button to add a new WebPart.

This list should already be populated with the WebParts you need, if you have deployed correctly

To configure or update the WebPart, simply use the Edit (pencil symbol) which will bring up a properties pane on the right side of the screen.

The document viewer WebPart is the core of our application. It comes out of the box with 3 varied and configurable viewtypes.

Our Normal View can show a single cabinet, NetDocuments workspace or other individual containers such as a single folder or a CollabSpace. Our Workspace view should be familiar to regular users of NetDocuments as it is a specialized view that aims to mimic the way that the NetDocuments website displays your workspace content. Document Viewer is also equipped to retrieve special query string properties such as netcode or cnum/mnum from the page URL and update the WebPart to display the corresponding container.

In Saved Search view, it can be configured to show the results of a saved search or filtered search. These must be created prior within the NetDocuments website.

In RecentDoc view, it can show the user’s most recently accessed, opened or added documents.

In Favorites view, it can show user-specified favorite documents or folders
